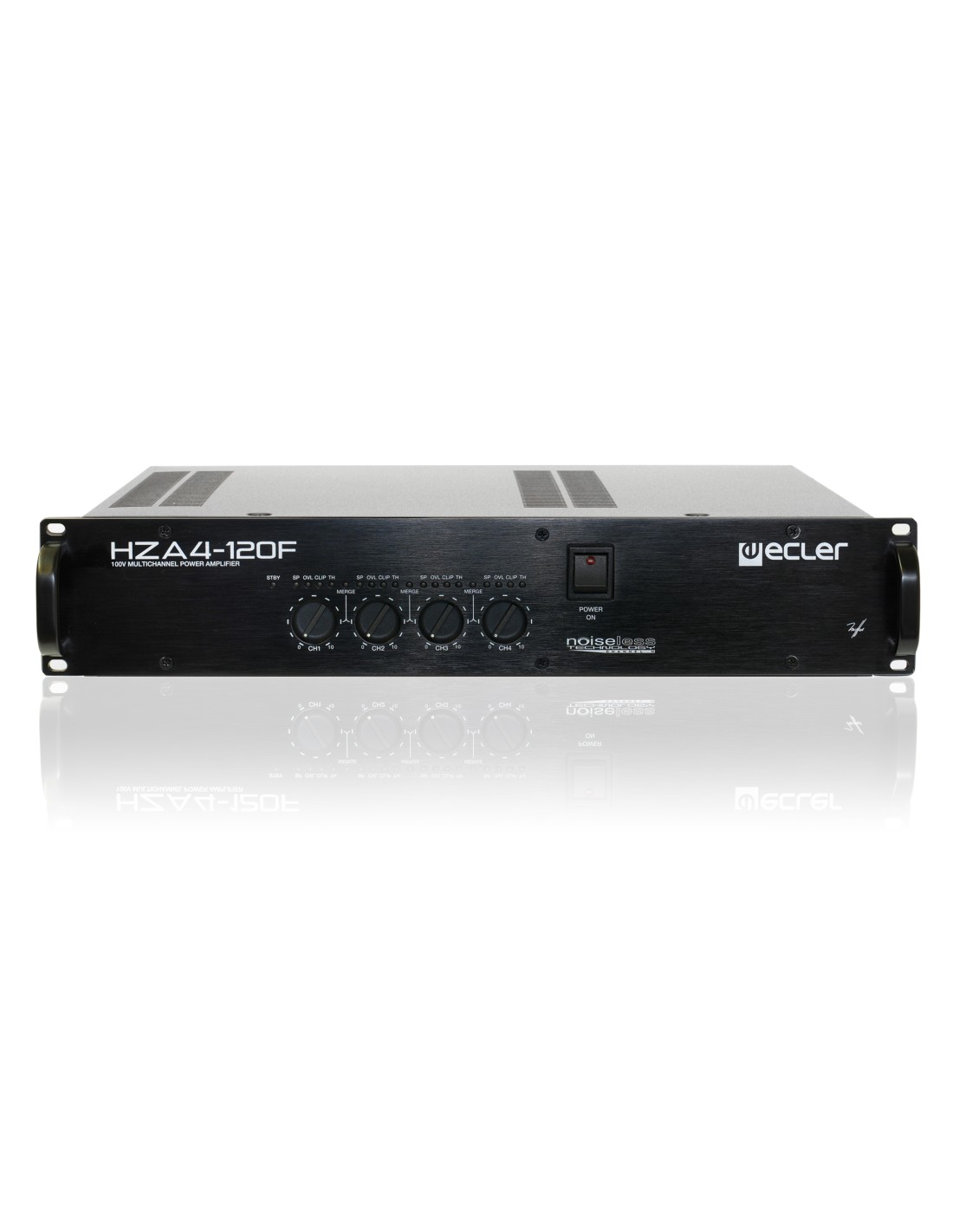

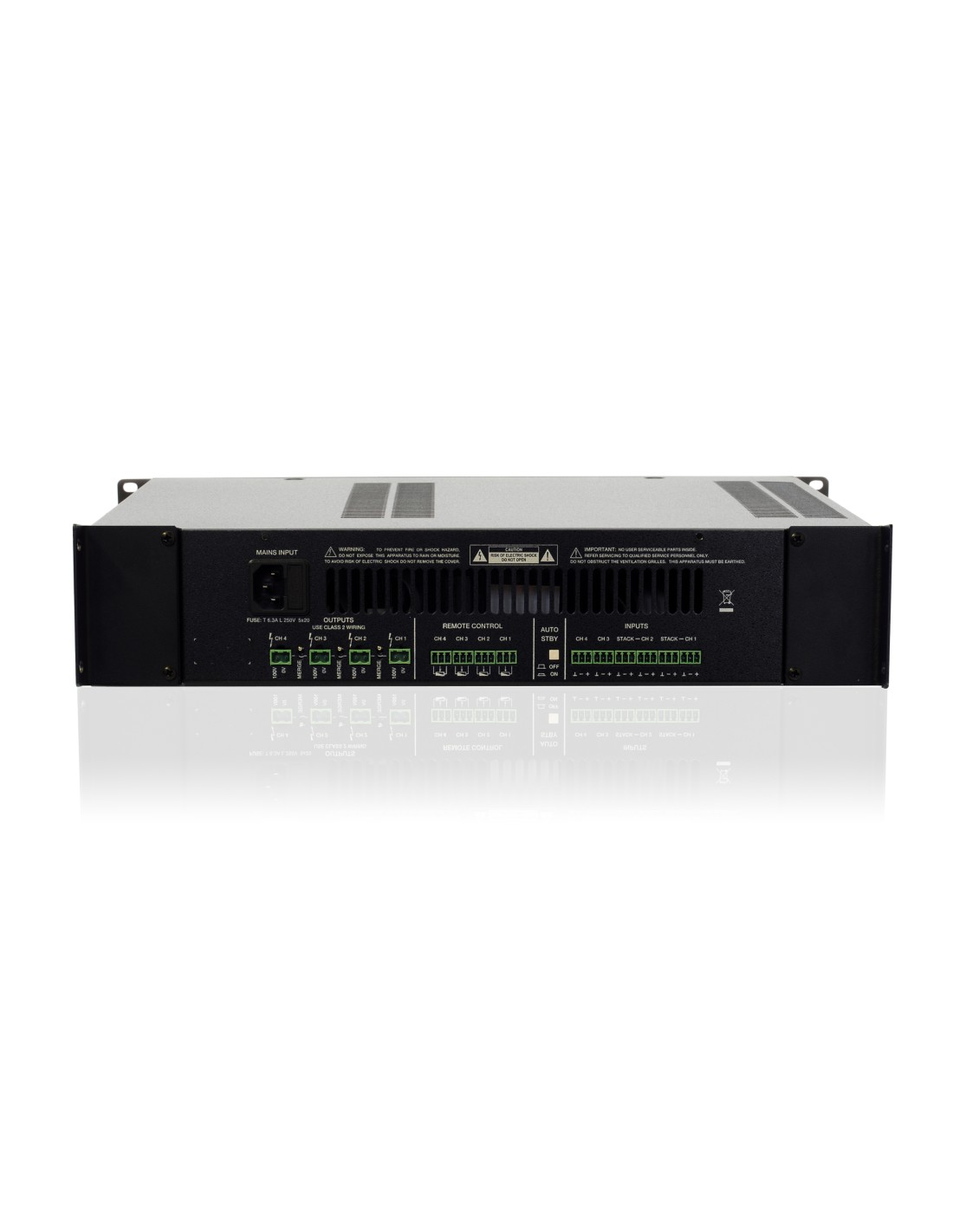

HZA4-120F

Reference CHZA4120F

Check availability

4x120 WRMS | Flexi-power | SPM 100 tech | amplifier

See more Features

Description
Product Details

HZA4-120F is a four MERGING channel amplifier with direct 4 x 120 WRMS @ 100 V line (high impedance) outputs. It integrates ECLER’s proprietary SPM 100 Technology - Channel N, which allows for 100 V speaker lines connection without using 100 V line transformers at the amplified outputs, as this kind of amplifiers usually do. This fact has many advantages, being the main ones the audio quality improvement (specially in the low-end frequencies) and the convection cooling, 100% silent.

Installation options: 19" rack format (2RU)
Operating temperature: Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity: 85% HR
<85% HR
Storage temperature: Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity: 90% HR
<90% HR
Optional accessories: WPaVol for remote control
Dimensions: 482.6 x 88 x 392 mm / 19 x 3.46 x 15.43 in. (WxHxD)
Weight: 13.60 kg / 29.98 lb
Shipping dimensions: 500 x 120 x 550 mm / 19.69 x 4.73 x 21.66 in. (WxHxD)
Shipping weight: 16.40 kg / 36.16 lb
Status: Eol
Origin Production: Spain
EAN code: 8435071304528
Tariff code: 8518400000
Shipping Location: Spain
Width (cm): 50.00
Height (cm): 12.00
Depth (cm): 55.00
Vol. (dm3): 33.00
Gross Weight (kg): 16.40
Net Weight (kg): 13.60
Format: Unit
Warranty (months): 36
Frequency response: 30Hz - 55kHz (-3dB)
Input sensitivity: 0dB
Crosstalk: 90dB @ 1kHz/100V
>90dB @ 1kHz/100V
GPIs: x4 GPIs (0-10VDC) for volume control
AC mains requirement: 115V/230V @ 47-63Hz. Voltage changed internally (NOT BY SWITCH)
AC mains connector: AC socket connector (IEC)
SNR: 90dB @ 100V
>90dB @ 100V
Output connection type: Euroblock
Number of output channels: 4
Number of input channels: 4
Input connection type: Euroblock
Max output power @ 100V: 1 Channel 114 W
2 Merged Channels 195 W
3 Merged Channels 290 W
4 Merged Channels 356 W
Input impedance: 20kW
>20kW
THD + Noise: 0.03% typ. 0.2% max. @ 1kHz Full Power
<0.03% typ. 0.2% max. @ 1kHz Full Power
Cooling: Convection
Power Consumption (STBY): <3 W
Output configuration: 4 x 120 W RMS @ 100 V line
Input configuration: Balanced and line level analogue signal inputs
Power Consumption (1/3 POWER, @ 4Ω): pink noise, 470 VA @ 136Ω
Power Consumption (1/8 POWER, @ 4Ω): pink noice, 340 VA @ 136Ω
Energy save: Auto standby function
AC protection: No
DC protection: No
VHF protection: No
Short-circuit protection: Yes
Clip limiter: Yes
Long term limiter: No
Thermal protection: Yes
Attenuators: Front panel knobs per channel
Auto stand-by function: Back panel button
Auto stand-by time: 120 seconds
Signal Present: SP LED (Green) per channel (-35dB)
Cliping: CLIP LED (Red) per channel
Standby: STBY LED (Red)
Filters: 70Hz 3rd order Butterworth High-Pass filter
Auto standby time: 120 seconds
Auto standby threshold: -30dB aprox
Auto stand-by threshold: > -30dB aprox
Amplification technology: SPM 100
Power ON/OFF: Front panel switch & indicator
Thermal: TH LED (Red) per channel
Protect: PROT LED (Red) per channel
Energy saving: Auto standby function
Power Consumption (STBY/SLEEP): 3 W
Auto standby function: Back panel button
Power Consumption (1/3 POWER, @ 4Ω all channels driven): pink noise, 470 VA @ 136Ω
Power Consumption (1/8 POWER, @ 4Ω all channels driven): pink noice, 340 VA @ 136Ω
