eSAM402
CESAM402C
Only a few left
4x2 | 1U rack | analogue mixer

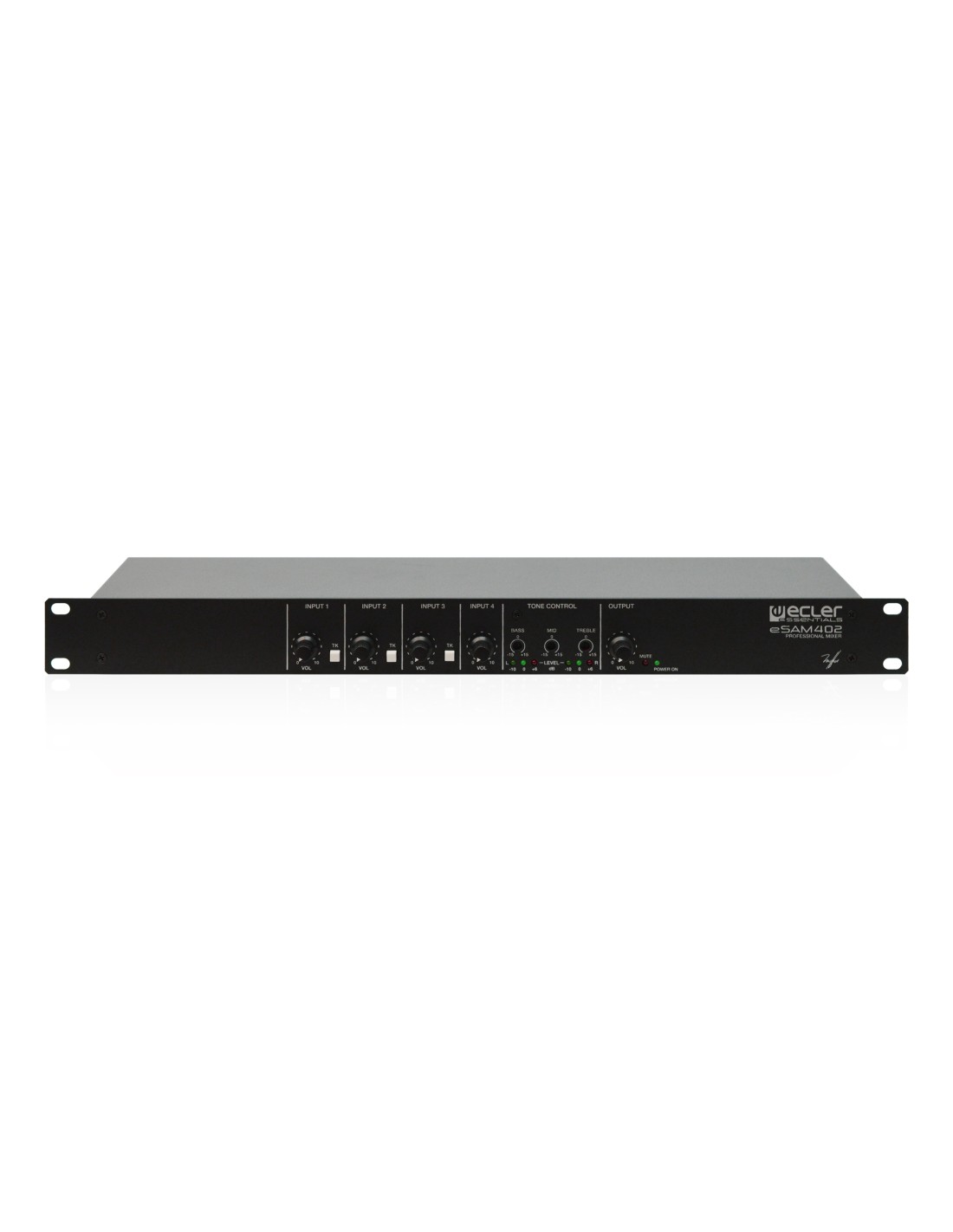

eSAM402 is an installation audio mixer in standard rack format, featuring 3 MIC/LINE ST inputs, 1 LINE ST input, 1 main mix output and one AUX/REC additional output. It includes a 3 band tone control section, Talkover (priority) function assignable to each MIC/LINE input over the mix bus, ST/MONO mix switch and MUTE port for external dry contact triggering.

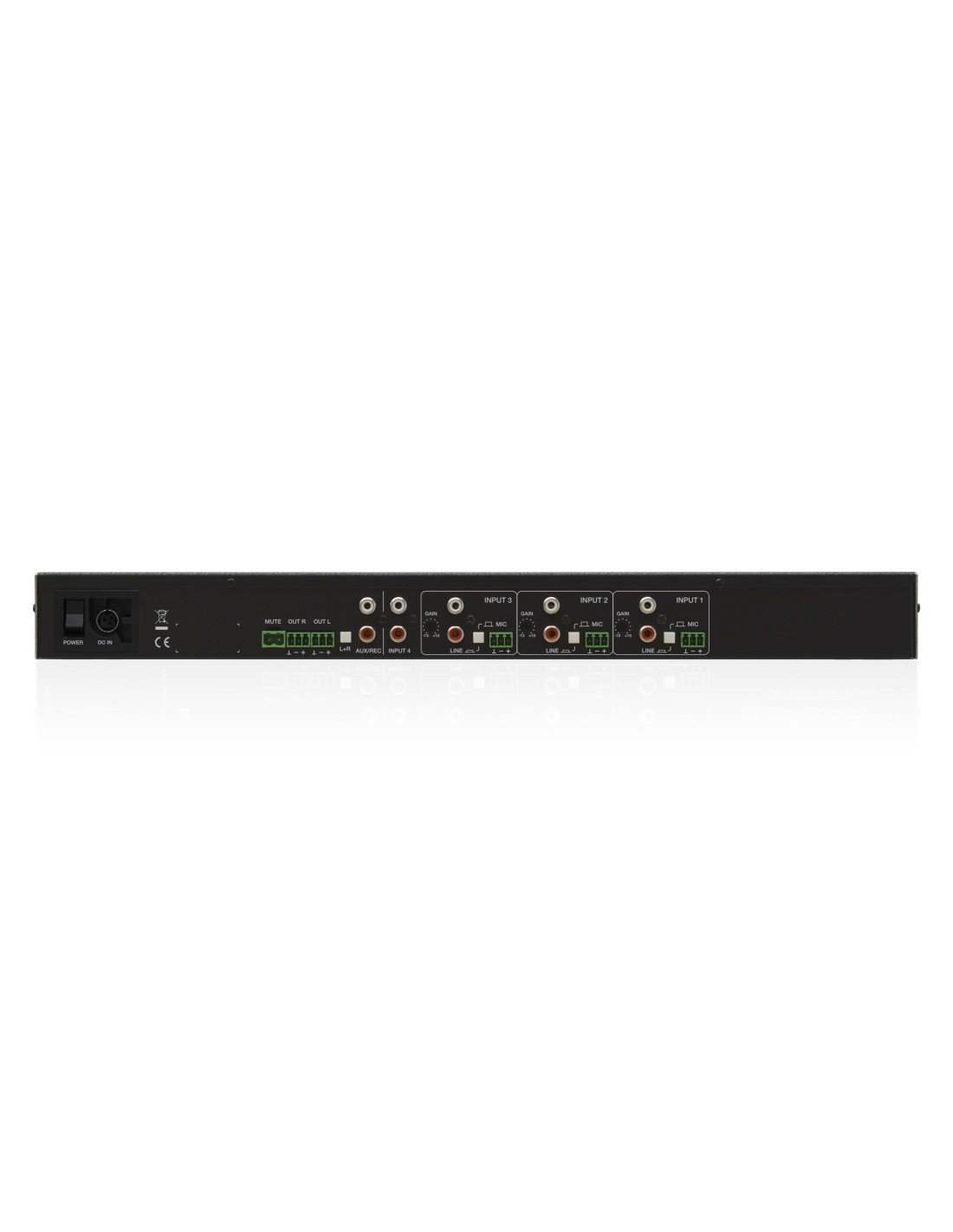

- Connection type
- MIC: 3-pin Euroblock
LINE: RCA
Main: 3-pin Euroblock
AUX/REC: RCA - Installation options
- 19" rack format (1RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Dimensions
- 482.6 x 44 x 120 mm / 19 x 1.73 x 4.72 in. (WxHxD)
- Weight
- 1.7 kg / 3.75 lb
- Shipping dimensions
- TBC
- Shipping weight
- TBC
- Status
- Descat
- EAN code
- 8435071305235
8435071308182 - Tariff code
- 8518400000
- Shipping Location
- Spain
- Number of input ports
- 3, MIC/LINE level
1, LINE level - Input sensitivity
- LINE 1-3: 0dB
LINE 4: -6dBV (internally selectable)
MIC 1-3 BAL: 35dB - CMRR
- MIC 60dB @ 1 kHz
MIC >60dB @ 1 kHz - Number of output ports
- 1 main mix output
1 AUX/REC output - Output impedance
- OUT: 600Ω
AUX/REC: 10kΩ - GPIs
- MUTE control port NO/NC
- AC mains requirement
- 100-240 VAC + External PSU 17.5VDC
- AC mains connector
- IEC inlet connector
- Power consumption
- 14 VA
- Control Buttons
- Power ON, Talkover, LINE/MIC,
- Status Indicators
- Power ON LED, MUTE LED, LED Vu-meter LEVEL,
- Power supply
- External power supply
- Phantom power
- +18VDC
- Input impedance
- LINE 1-3: 0dB
LINE 4: -6dBV (internally selectable)
MIC 1-3 BAL: 35dB - THD + Noise
- LINE 0.005%
MIC BAL 0.04% - Tone control
- 3-way tone control
- THD + Noise
- LINE 0.005%
MIC BAL 0.04%
LINE <0.005%
MIC BAL <0.04% - Tone Frequency Cut
- BASS 100Hz ±15dB
MID 2kHz ±15dB
TREBLE 10kHz ±15dB - Talkover
- Yes
- Phantom voltage
- +18VDC
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
PHYSICAL
| Connection type |
MIC: 3-pin Euroblock
LINE: RCA Main: 3-pin Euroblock AUX/REC: RCA |
|---|---|
| Installation options |
19" rack format (1RU) |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Dimensions |
482.6 x 44 x 120 mm / 19 x 1.73 x 4.72 in. (WxHxD) |
| Weight |
1.7 kg / 3.75 lb |
| Shipping dimensions |
TBC |
| Shipping weight |
TBC |
LOGISTICS
| Status |
Descat |
|---|---|
| EAN code |
8435071305235
8435071308182 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
MICS
| Output impedance |
OUT: 600Ω
AUX/REC: 10kΩ |
|---|
ELECTRICAL
| AC mains requirement |
100-240 VAC + External PSU 17.5VDC |
|---|---|
| AC mains connector |
IEC inlet connector |
| Power consumption |
14 VA |
| Power supply |
External power supply |
ANALOGUE AUDIO INPUT PORTS
| Number of input ports |
3, MIC/LINE level
1, LINE level |
|---|---|
| Phantom voltage |
+18VDC |
ANALOGUE AUDIO OUTPUT PORTS
| Number of output ports |
1 main mix output
1 AUX/REC output |
|---|
REMOTE CONTROL CONNECTIONS
| GPIs |
MUTE control port NO/NC |
|---|
ANALOGUE AUDIO INPUTS
| Input sensitivity |
LINE 1-3: 0dB
LINE 4: -6dBV (internally selectable)
MIC 1-3 BAL: 35dB |
|---|---|
| THD + Noise |
LINE <0.005%
MIC BAL <0.04% LINE 0.005% MIC BAL 0.04% |
MONITORING AND CONTROL
| Tone control |
3-way tone control |
|---|
DEVICE CONTROL
| Control Buttons |
Power ON, Talkover, LINE/MIC, |
|---|---|
| Status Indicators |
Power ON LED, MUTE LED, LED Vu-meter LEVEL, |
| Tone Frequency Cut |
BASS 100Hz ±15dB
MID 2kHz ±15dB
TREBLE 10kHz ±15dB |
| Talkover |
Yes |
MIC INPUTS
| Phantom power |
+18VDC |
|---|
LINE INPUTS
| CMRR |
MIC >60dB @ 1 kHz MIC 60dB @ 1 kHz |
|---|---|
| Input impedance |
LINE 1-3: 0dB
LINE 4: -6dBV (internally selectable)
MIC 1-3 BAL: 35dB |
LINE OUTPUTS
| THD + Noise |
