eHSA4-500
CEHSA4500
Check availability
4x500 WRMS | multichannel | amplifier

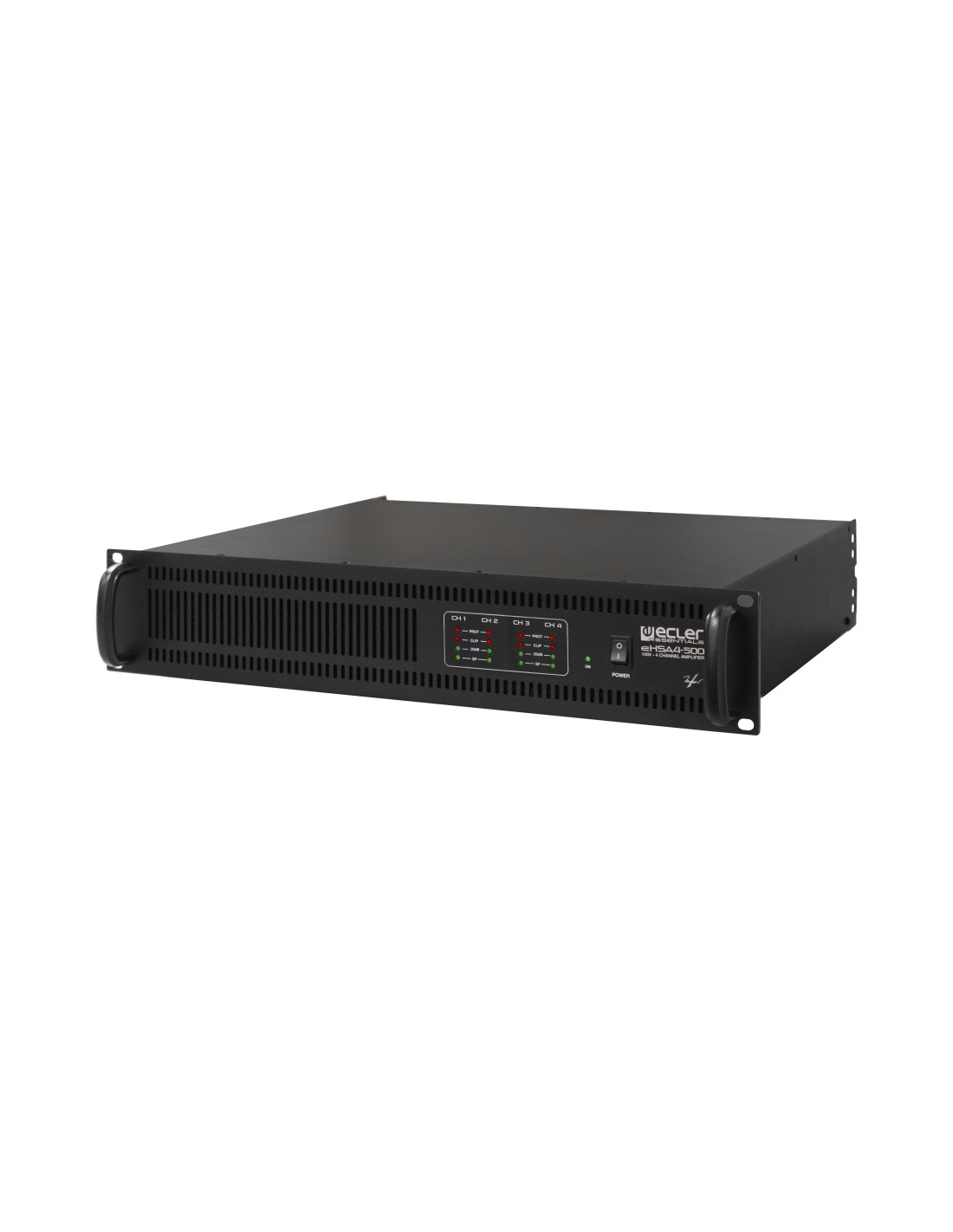

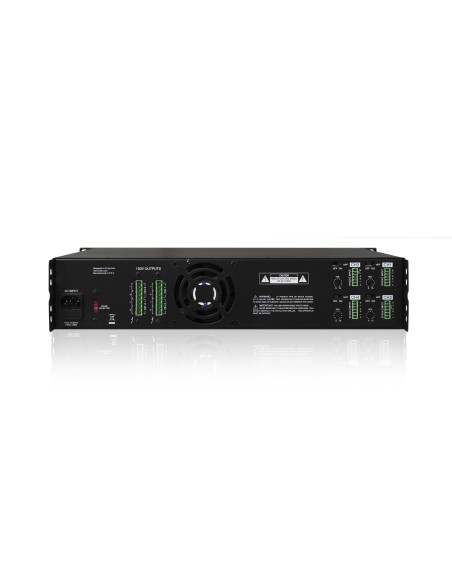

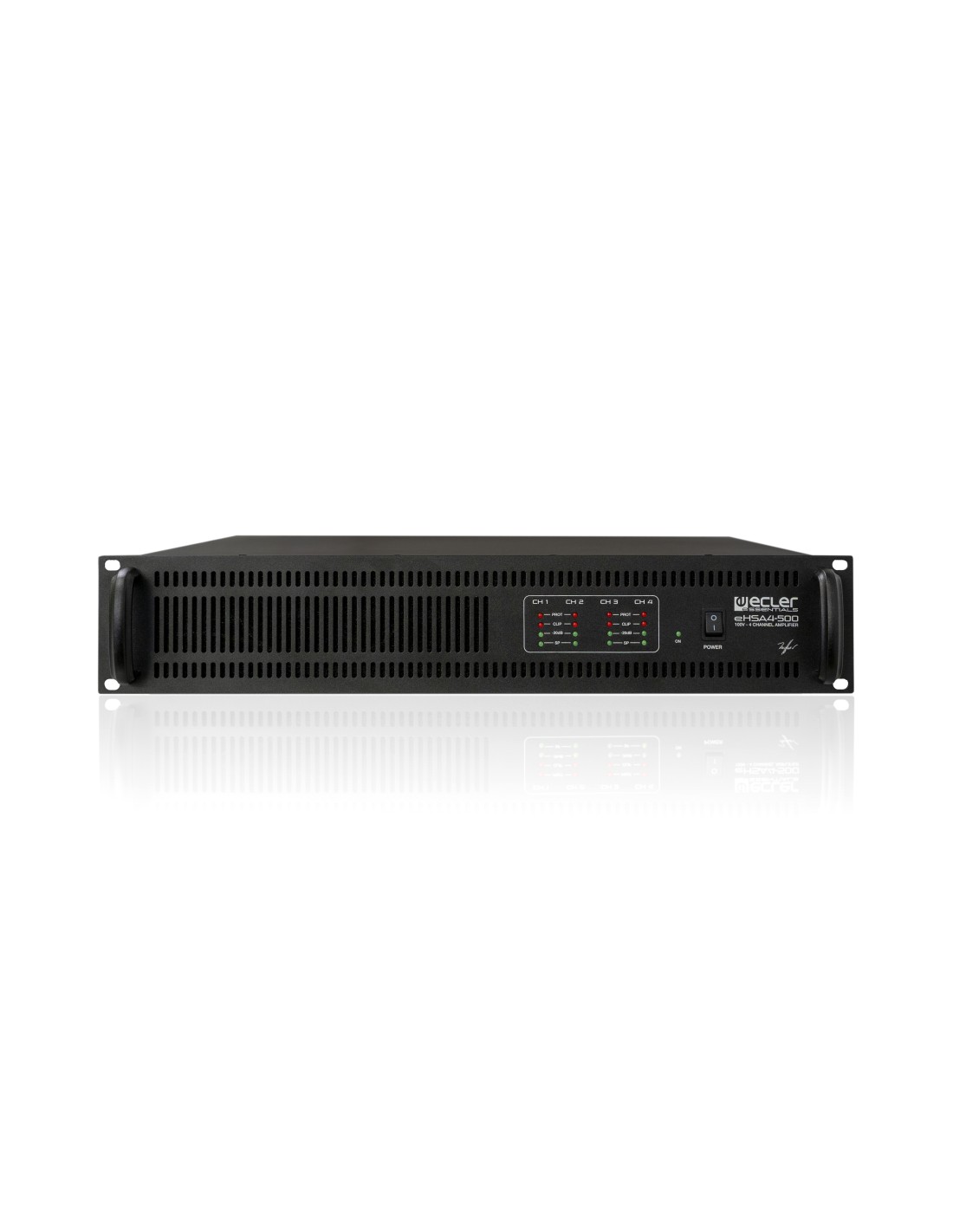

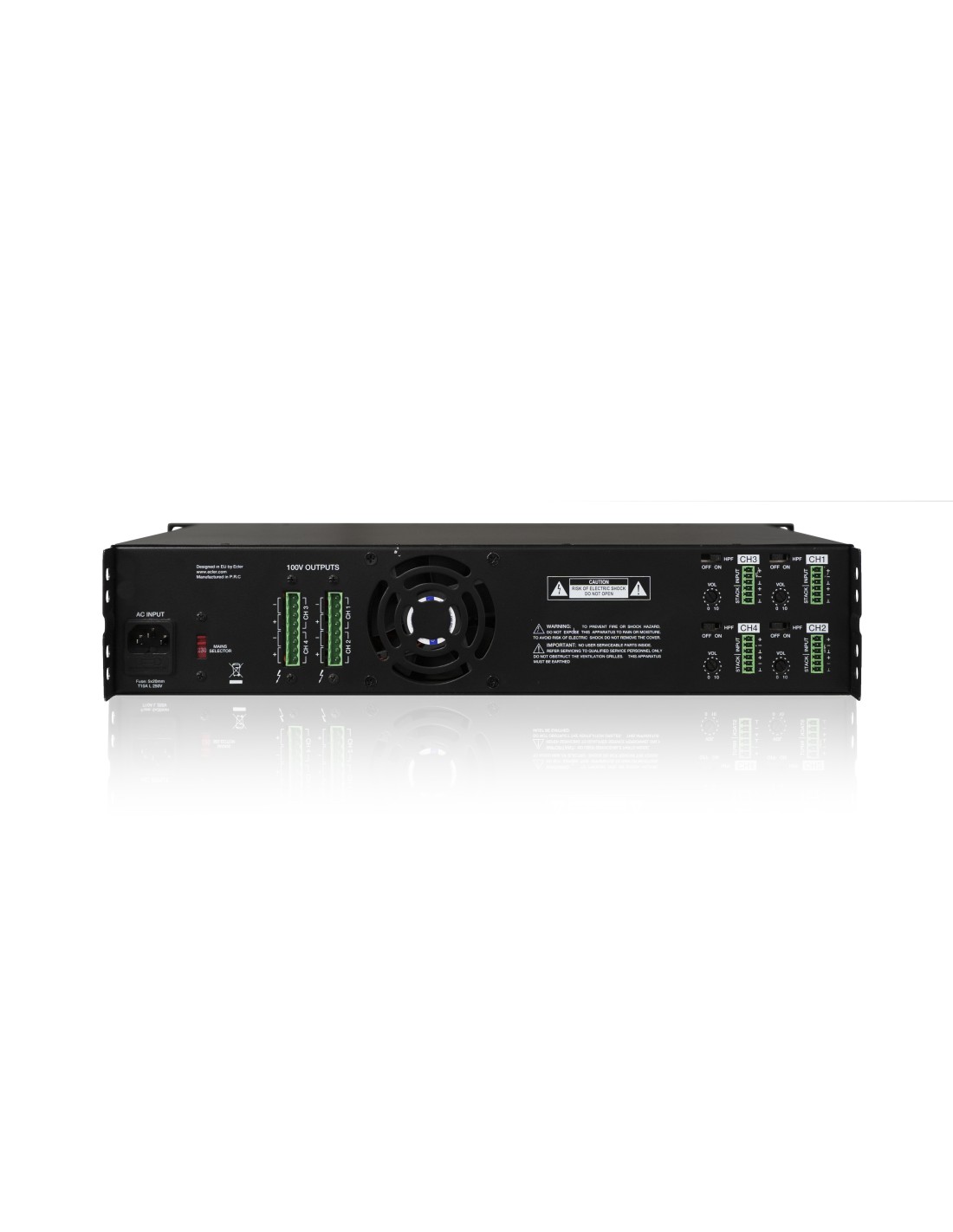

eHSA4-500 is a multichannel amplifier with 4 high impedance powered outputs. New light-weight format in 2RU, versatile and affordable.
- Installation options
- 19" rack format (2RU)
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Dimensions
- 482.6 x 88 x 365 mm / 19 x 3.46 x 14.37 in. (WxHxD)
- Weight
- 7.6 kg / 16.76 lb
- Shipping dimensions
- 490 x 170 x 540 mm / 19.3 x 6.7 x 21.26 in. (WxHxD)
- Shipping weight
- 9.8 kg / 21.61 lb
- Status
- New
- Origin Production
- China
- EAN code
- 8435071307048
- Tariff code
- 8518400000
- Shipping Location
- Spain
- Width (cm)
- 49.00
- Height (cm)
- 17.00
- Depth (cm)
- 54.00
- Vol. (dm3)
- 44.98
- Gross Weight (kg)
- 9.80
- Net Weight (kg)
- 7.60
- Format
- Unit
- Warranty (months)
- 36
- Frequency response
- 40Hz - 20kHz (-3dB, -3dB)
- Input sensitivity
- 0dB
- CMRR
- 55dB
>55dB
- Crosstalk
- 55dB @ 1kHz
>55dB @ 1kHz - AC mains requirement
- 115V/230V @ 50-60Hz. Voltage changed by Switch, externally
- AC mains connector
- AC socket connector (IEC)
- SNR
- 80dB 20Hz - 20kHz
>80dB 20Hz - 20kHz - Output connection type
- Euroblock
- Number of output channels
- 4
- Number of input channels
- 4
- Input connection type
- Euroblock
- Max output power @ 100V
- 450W
- Input impedance
- 20kΩ (10kΩ unbalanced)
>20kΩ (10kΩ unbalanced) - THD + Noise
- 0.05% @ 1kHz Full Power
<0.05% @ 1kHz Full Power - Power Consumption (IDLE)
- 65 W
- Output configuration
- 4 x 500 W RMS output (100V line level)
- Input configuration
- Balanced inputs
- Power Consumption (1/3 POWER, @ 4Ω)
- pink noise, 860 W
- Power Consumption (1/8 POWER, @ 4Ω)
- pink noise, 380 W
- AC protection
- No
- DC protection
- Yes
- VHF protection
- No
- Short-circuit protection
- Yes
- Clip limiter
- Yes
- Long term limiter
- No
- Thermal protection
- Yes
- Attenuators
- Rear panel knobs per channel
- Output settings
- 100V outputs
- Signal Present
- SP LED (Green) per channel
- Cliping
- CLIP LED (Red) per channel
- Filters
- 75Hz 3rd order Butterworth High-Pass filter
- Power ON/OFF
- Front panel switch & indicator
- Thermal
- TH LED (Red)
- Protect
- PROT LED (Red) per channel
- Power Consumption (1/3 POWER, @ 4Ω all channels driven)
- pink noise, 860 W
- Power Consumption (1/8 POWER, @ 4Ω all channels driven)
- pink noise, 380 W
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Number of input channels |
4 |
|---|
PHYSICAL
| Installation options |
19" rack format (2RU) |
|---|---|
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Dimensions |
482.6 x 88 x 365 mm / 19 x 3.46 x 14.37 in. (WxHxD) |
| Weight |
7.6 kg / 16.76 lb |
| Shipping dimensions |
490 x 170 x 540 mm / 19.3 x 6.7 x 21.26 in. (WxHxD) |
| Shipping weight |
9.8 kg / 21.61 lb |
| Format |
Unit |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
8435071307048 |
| Tariff code |
8518400000 |
| Shipping Location |
Spain |
| Width (cm) |
49.00 |
| Height (cm) |
17.00 |
| Depth (cm) |
54.00 |
| Vol. (dm3) |
44.98 |
| Gross Weight (kg) |
9.80 |
| Net Weight (kg) |
7.60 |
| Warranty (months) |
36 |
ELECTRICAL
| AC mains requirement |
115V/230V @ 50-60Hz. Voltage changed by Switch, externally |
|---|---|
| AC mains connector |
AC socket connector (IEC) |
ANALOGUE AUDIO OUTPUT PORTS
| Crosstalk |
>55dB @ 1kHz 55dB @ 1kHz |
|---|
CHANNELS
| Number of output channels |
4 |
|---|---|
| Output configuration |
4 x 500 W RMS output (100V line level) |
| Input configuration |
Balanced inputs |
SIGNAL
| SNR |
>80dB 20Hz - 20kHz 80dB 20Hz - 20kHz |
|---|
POWER CONSUMPTION
| Power Consumption (IDLE) |
65 W |
|---|---|
| Power Consumption (1/3 POWER, @ 4Ω) |
pink noise, 860 W |
| Power Consumption (1/8 POWER, @ 4Ω) |
pink noise, 380 W |
| Power Consumption (1/3 POWER, @ 4Ω all channels driven) |
pink noise, 860 W |
| Power Consumption (1/8 POWER, @ 4Ω all channels driven) |
pink noise, 380 W |
PROTECTIONS
| AC protection |
No |
|---|---|
| DC protection |
Yes |
| VHF protection |
No |
| Short-circuit protection |
Yes |
| Clip limiter |
Yes |
| Long term limiter |
No |
| Thermal protection |
Yes |
SETTINGS
| Output settings |
100V outputs |
|---|
MONITORING
| Signal Present |
SP LED (Green) per channel |
|---|---|
| Cliping |
CLIP LED (Red) per channel |
| Thermal |
TH LED (Red) |
| Protect |
PROT LED (Red) per channel |
ANALOGUE AUDIO INPUTS
| Input sensitivity |
0dB |
|---|
MIC INPUTS
| Filters |
75Hz 3rd order Butterworth High-Pass filter |
|---|
LINE INPUTS
| CMRR |
>55dB
55dB |
|---|---|
| Input connection type |
Euroblock |
| Input impedance |
>20kΩ (10kΩ unbalanced) 20kΩ (10kΩ unbalanced) |
LINE OUTPUTS
| Frequency response |
40Hz - 20kHz (-3dB, -3dB) |
|---|---|
| Output connection type |
Euroblock |
| THD + Noise |
<0.05% @ 1kHz Full Power 0.05% @ 1kHz Full Power |
LOCAL CONTROL
| Attenuators |
Rear panel knobs per channel
|
|---|---|
| Power ON/OFF |
Front panel switch & indicator |
OUTPUT POWER - All channels driven @ 1%THD
| Max output power @ 100V |
450W |
|---|
