AUDEOSB110P
CAUDEOSB110P
Check availability
10" | 1-way | 150 WRMS | powered | auto-standby

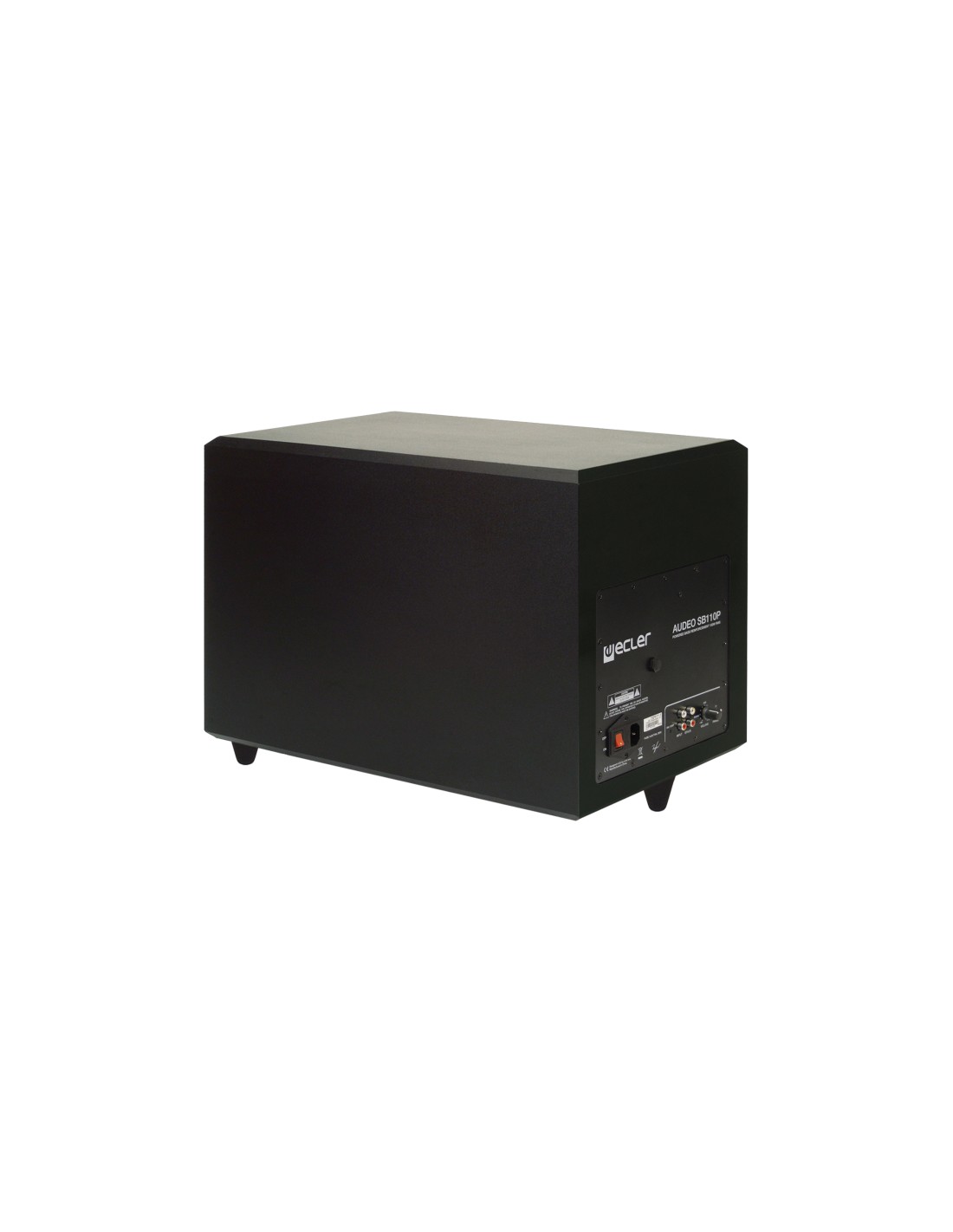

AUDEOSB110P is the self-powered sub-woofer reinforcement unit from the AUDEO series. With a discreet design which enables its use in any environment, this 10”, 150 W RMS model, is the ideal partner for the AUDEOs in those music applications where extended low-end response is required.
- Effective Freq. Range
- 40Hz (-10dB)
- Power handling
- 150 W RMS / 600 W Peak
- Sensitivity
- 90 dB (1W/1m)
- Maximum SPL
- 112 dB continuous / 118 dB peak
- Recommended amplifier power
- 300 W RMS
- Ways
- 1 way subwoofer

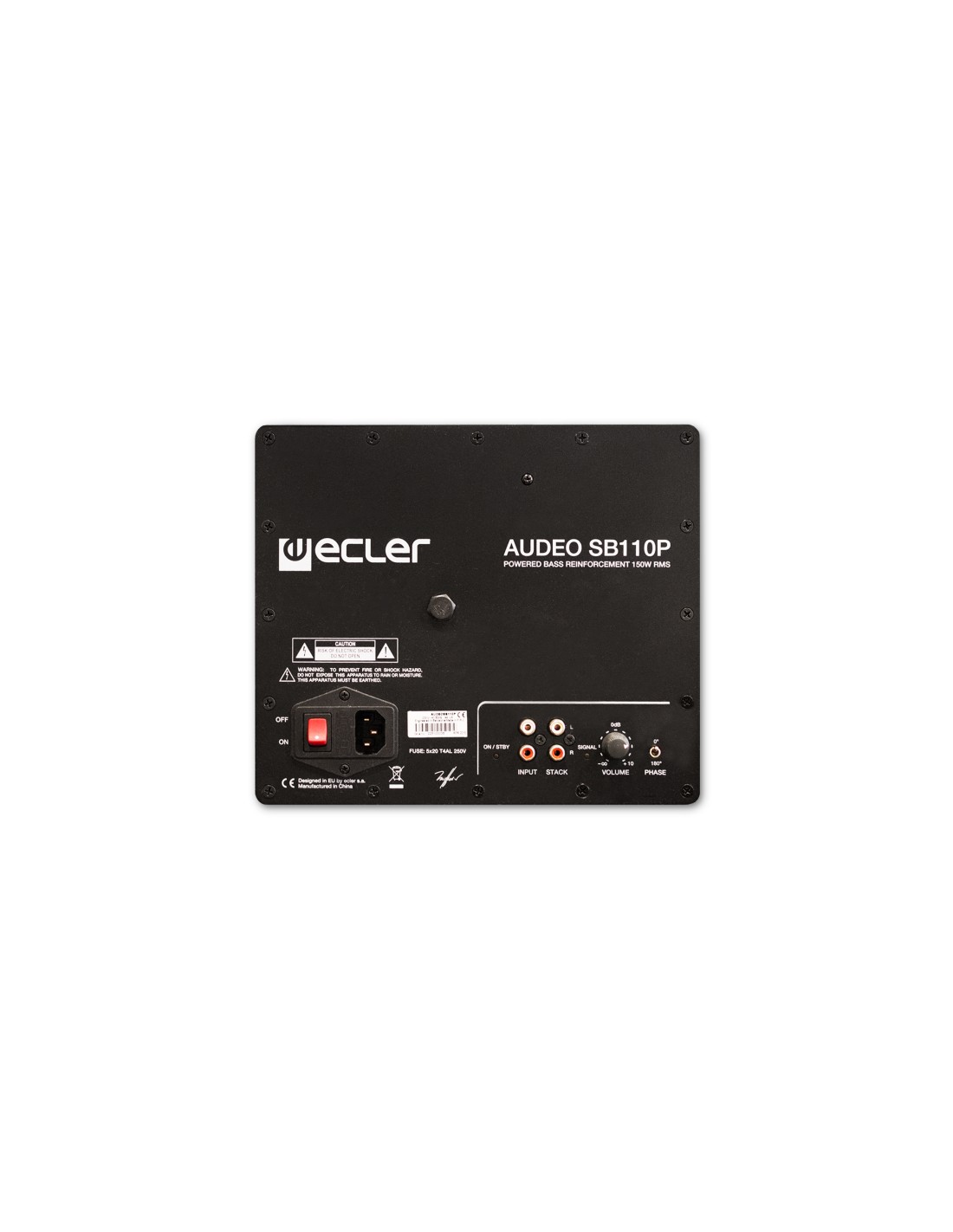

- Connection type
- RCA inputs, RCA stack outputs
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR - Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR - Finished colour
- Black (RAL 9005)
- Dimensions
- 310 x 425 x 480 mm / 12.2 x 16.73 x 18.9 in. (WxHxD)
- Weight
- 16.75 kg / 36.93 lb
- Pieces per box
- Unit
- Shipping dimensions
- 550 x 480 x 390 mm / 21.65 x 18.9 x 15.35 in. (WxHxD)
- Shipping weight
- 16 kg / 35.27 lb
- Status
- Eol
- Origin Production
- China
- EAN code
- 8435071303880
- Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 55.00
- Height (cm)
- 48.00
- Depth (cm)
- 39.00
- Vol. (dm3)
- 102.96
- Gross Weight (kg)
- 16.00
- Net Weight (kg)
- 11.50
- Format
- Unit
- Warranty (months)
- 36
- Input sensitivity
- 0dBV 1V 1kW
0dBV 1V >1kW - Power consumption
- 237 VA (max. power)
- Mounting system
- Cabinet
- Driver
- 10" woofer
- Low-Pass filter selector
- 150Hz/18dB oct.
- Power
- 150 W RMS / 600 W Peak
- Audio inputs
- RCA inputs with mono conversion
- Audio outputs
- RCA stack outputs
- LED Indicators
- SP, Power ON, Stand-by
- Mains
- AC 115V/230V 50-60Hz
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
40Hz (-10dB) |
|---|---|
| Power handling |
150 W RMS / 600 W Peak |
| Sensitivity |
90 dB (1W/1m) |
| Maximum SPL |
112 dB continuous / 118 dB peak |
| Recommended amplifier power |
300 W RMS |
TRANSDUCERS
| Ways |
1 way subwoofer |
|---|---|
| Driver |
10" woofer |
FILTERS
| Low-Pass filter selector |
150Hz/18dB oct. |
|---|
PHYSICAL
| Connection type |
RCA inputs, RCA stack outputs |
|---|---|
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR 85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR 90% HR |
| Finished colour |
Black (RAL 9005) |
| Dimensions |
310 x 425 x 480 mm / 12.2 x 16.73 x 18.9 in. (WxHxD) |
| Weight |
16.75 kg / 36.93 lb |
| Pieces per box |
Unit |
| Shipping dimensions |
550 x 480 x 390 mm / 21.65 x 18.9 x 15.35 in. (WxHxD) |
| Shipping weight |
16 kg / 35.27 lb |
| Format |
Unit |
| Mounting system |
Cabinet |
POWERED
| Power |
150 W RMS / 600 W Peak |
|---|---|
| Audio inputs |
RCA inputs with mono conversion |
| Audio outputs |
RCA stack outputs |
| Mains |
AC 115V/230V 50-60Hz |
LOGISTICS
| Status |
Eol |
|---|---|
| Origin Production |
China |
| EAN code |
8435071303880 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
55.00 |
| Height (cm) |
48.00 |
| Depth (cm) |
39.00 |
| Vol. (dm3) |
102.96 |
| Gross Weight (kg) |
16.00 |
| Net Weight (kg) |
11.50 |
| Warranty (months) |
36 |
ELECTRICAL
| Power consumption |
237 VA (max. power) |
|---|
ANALOGUE AUDIO INPUTS
| Input sensitivity |
0dBV 1V >1kW 0dBV 1V 1kW |
|---|
MONITORING AND CONTROL
| LED Indicators |
SP, Power ON, Stand-by |
|---|
