AUDEO106 BK
CAUDEO106BK
Only a few left
6.5" | 2-way | 50 WRMS | Giugiaro Design
AUDEO106 is a 2-way, 50 WRMS loudspeaker cabinet. It features a 6.5” woofer and 1" tweeter. AUDEO series has a balanced, innovative design, resulting from the collaboration between ECLER and the prestigious group Giugiaro Design. It satisfies today's demands with respect to aesthetics, design and integration into all types of architectural environments which, together with its excellent sound quality, make this series the ideal solution for use in numerous sound projects.
- Effective Freq. Range
- 106 Hz-20 kHz (-10dB)
- Coverage angle / Dispersion
- 120°x120° (HxV)
- Power handling
- 50 W RMS / 200 W Peak
- Sensitivity
- 90 dB (1W/1m)
- Maximum SPL
- 107 dB continuous / 113 dB peak
- Recommended amplifier power
- 100 W RMS
- Ways
- 2-ways full range
- Low frequency driver
- 6,5" woofer
- High frequency driver
- 1" tweeter
- Nominal impedance
- 8Ω
- Installation options
- Wall
- Environmental
- IP54 rated
- Enclosure material
- Reinforced ABS
- Operating temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Operating humidity
- 85% HR
<85% HR
- Storage temperature
- Min: -10°C ; 14°F
Max: 40°C ; 104°F - Storage humidity
- 90% HR
<90% HR
- Included accessories

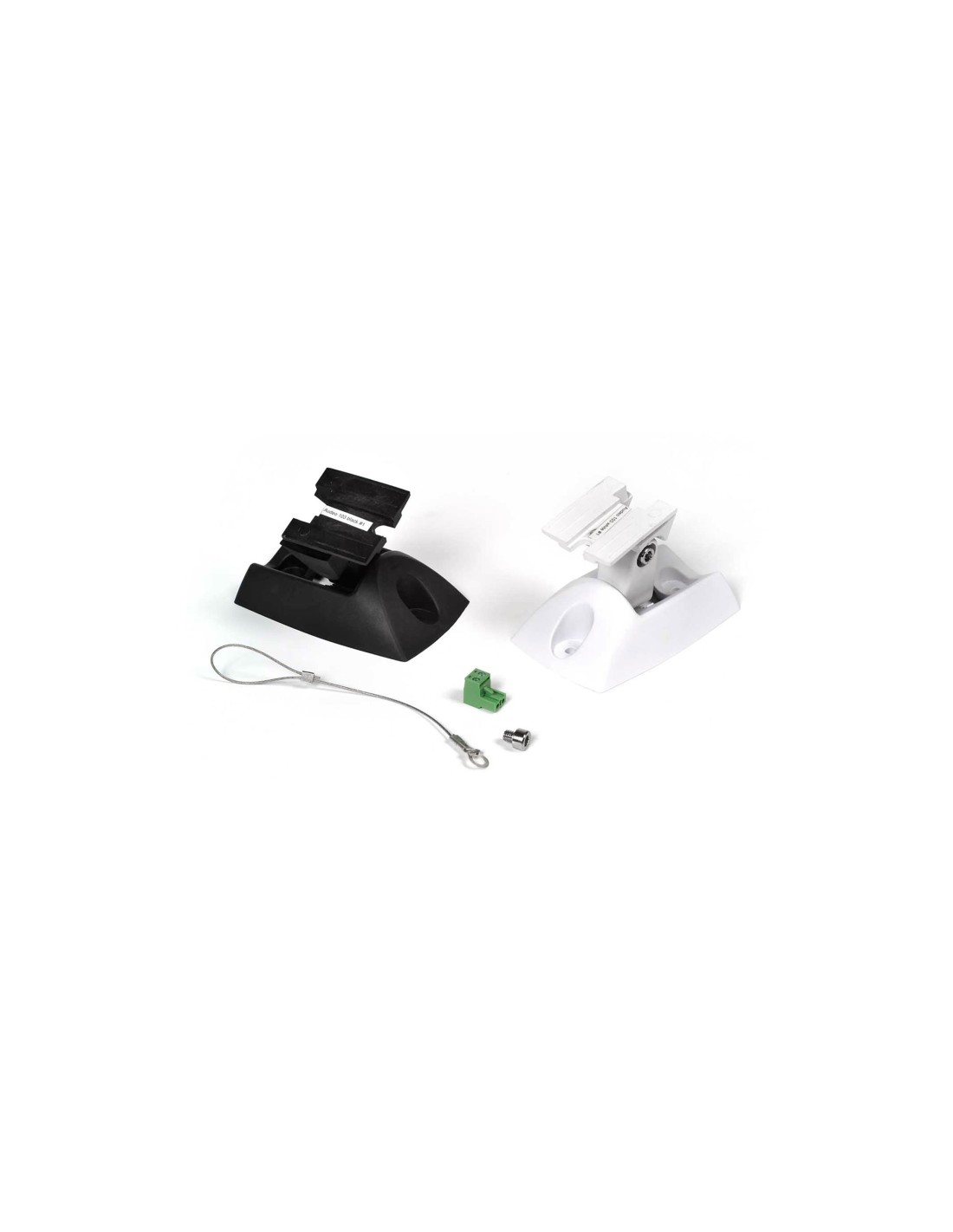

- Wall-mounting accessories
- Finished colour
- White (RAL 9003) or Black (RAL 9005)
- Dimensions
- Without accessories:
241 x 244 x 163 mm / 9.49 x 9.61 x 6.42 in. (WxHxD) - Weight
- 2.3 kg / 5.07 lb
- Pieces per box
- Pair
- Shipping dimensions
- 560 x 280 x 210 mm / 22.05 x 11.02 x 8.27 in. (WxHxD)
- Shipping weight
- 2.88 kg / 6.35 lb
- Status
- New
- Origin Production
- China
- EAN code
- BK: 8435071303460
WH: 8435071303477 - Tariff code
- 8518220000
- Shipping Location
- Spain
- Width (cm)
- 56.00
- Height (cm)
- 28.00
- Depth (cm)
- 21.00
- Vol. (dm3)
- 32.93
- Gross Weight (kg)
- 2.88
- Net Weight (kg)
- 2.30
- Format
- Pair
- Warranty (months)
- 36
- Mounting system
- Cabinet
- Power options (Hi Z Multi-tap)
- 100V: 30W / 15W /7,5W / 5W / 8Ω
70V: 15W /7,5W / 5W / 2,5 / 8Ω - Power type selector
- Switch
Services and facilities implemented
¿Necesitas ayuda?
Contacta con el comercial más cercano
Encuentra a tu comercial
Si ya conoces a tu comercial asignado inicia sesión para contactar directamente
O déjanos aquí tus dudas y nuestros expertos te ayudarán
SYSTEM
| Effective Freq. Range |
106 Hz-20 kHz (-10dB) |
|---|---|
| Coverage angle / Dispersion |
120°x120° (HxV) |
| Power handling |
50 W RMS / 200 W Peak |
| Sensitivity |
90 dB (1W/1m) |
| Maximum SPL |
107 dB continuous / 113 dB peak |
| Recommended amplifier power |
100 W RMS |
| Power options (Hi Z Multi-tap) |
100V: 30W / 15W /7,5W / 5W / 8Ω
70V: 15W /7,5W / 5W / 2,5 / 8Ω |
TRANSDUCERS
| Ways |
2-ways full range |
|---|---|
| Low frequency driver |
6,5" woofer |
| High frequency driver |
1" tweeter |
| Nominal impedance |
8Ω |
PHYSICAL
| Installation options |
Wall |
|---|---|
| Environmental |
IP54 rated |
| Enclosure material |
Reinforced ABS |
| Operating temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Operating humidity |
<85% HR
85% HR |
| Storage temperature |
Min: -10°C ; 14°F
Max: 40°C ; 104°F |
| Storage humidity |
<90% HR
90% HR |
| Included accessories |
Wall-mounting accessories |
| Finished colour |
White (RAL 9003) or Black (RAL 9005) |
| Dimensions |
Without accessories:
241 x 244 x 163 mm / 9.49 x 9.61 x 6.42 in. (WxHxD) |
| Weight |
2.3 kg / 5.07 lb |
| Pieces per box |
Pair |
| Shipping dimensions |
560 x 280 x 210 mm / 22.05 x 11.02 x 8.27 in. (WxHxD) |
| Shipping weight |
2.88 kg / 6.35 lb |
| Format |
Pair |
| Mounting system |
Cabinet |
| Power type selector |
Switch |
LOGISTICS
| Status |
New |
|---|---|
| Origin Production |
China |
| EAN code |
BK: 8435071303460
WH: 8435071303477 |
| Tariff code |
8518220000 |
| Shipping Location |
Spain |
| Width (cm) |
56.00 |
| Height (cm) |
28.00 |
| Depth (cm) |
21.00 |
| Vol. (dm3) |
32.93 |
| Gross Weight (kg) |
2.88 |
| Net Weight (kg) |
2.30 |
| Warranty (months) |
36 |
