CVEOSWM45
Check availability
4K 5x1 Presentation SWITCHER with HDBaseT Extender
See more Features

VEO-SWM45 is a compact 4K presentation switcher and scaler. An integrated audio matrix allows to embed 5 unbalanced stereo signals and route them independently to the output. With friendly control options, VEO-SWM45 is a flexible and smart solution, tailor-made for small-to-medium sized commercial applications such as corporate, education and training room environments.
Installation options
Desktop, VEO-RACK19 - TBC
Operating temperature
Min: 0°C ; 32°F
Max: 40°C ; 104°F
Operating humidity
20 - 90% RH (no condensation)
Included accessories

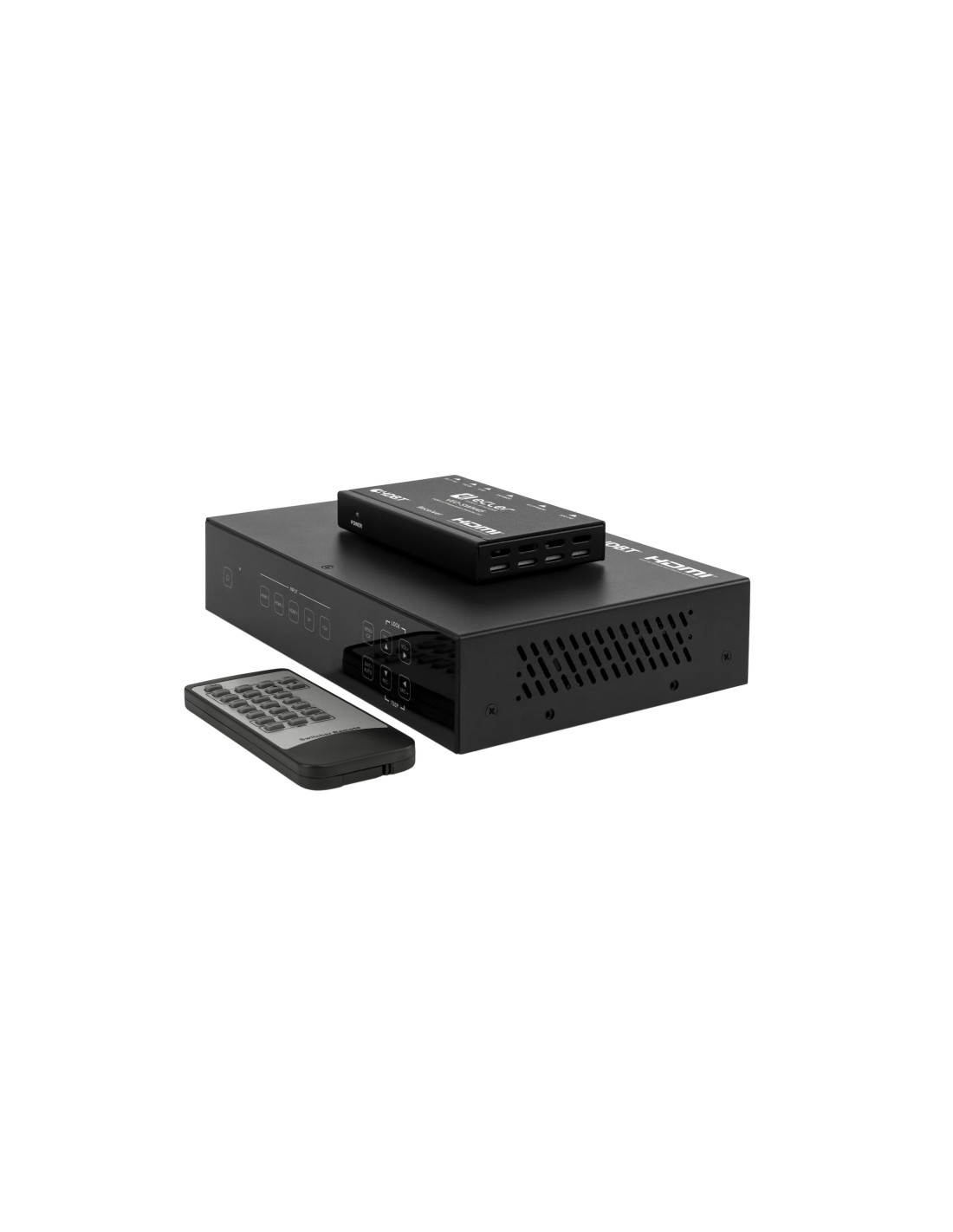

1 x HDBaseT Receiver, 2 x Mounting Ears, 1 x Remote Control, 2 x IR Receiver Cable, 2 x IR Blaster Cable, 1 x 24V/1A International Power Supply, 1 x 3RCA (Female) to D-SUB (Male) Adapter
Finished colour
Black
Dimensions
220 x 44 x 150 mm / 8.66 x 1.73 x 5.9 in. (WxHxD)
Weight
1.25 kg / 2.75 lb
Shipping dimensions
320 x 100 x 310 mm / 12.6 x 3.94 x 12.2 in. (WxHxD)
Shipping weight
2.1 kg / 4.63 lb
Status
Eol
Origin Production
China
EAN code
8435071307659
Tariff code
8517620000
Shipping Location
Spain
Power consumption
18W Maximum
Video Input Connectors
3 HDMI Type A Female, 2.0, 18 Gbps
1 DisplayPort input
1 VGA analog input
3 HDMI® Type A Female, 18 Gbps
1 DisplayPort input
1 VGA analog input
Video Output Connectors
1 HDMI Type A Female, 2.0, 10.2 Gbps
1 HDBT/PoC Port
1 HDMI® Type A Female, 10.2 Gbps
1 HDBT/PoC Port
Video Input Resolutions
HDMI/DisplayPort: up to 3840x2160@50/60Hz
CVBS: PAL/NTSC3.58/NTSC4.43/SECAM/PAL
M/PAL N
YPBPR: 480i to1080p
VGA: 640x480/60 up to 1920x1200/60
HDMI®/DisplayPort: up to 3840x2160@50/60Hz
CVBS: PAL/NTSC3.58/NTSC4.43/SECAM/PAL
M/PAL N
YPBPR: 480i to1080p
VGA: 640x480/60 up to 1920x1200/60
Video Output Resolutions
3840x2160@30, 3840x2160@25,
1920x1080p60, 1920x1080p50, 1280x720p/60,
1280x720p/50, 1024x768/60, 1280x800/60,
1360x768/60, 1400x1050/60, 1680x1050/60,
1920x1200/60
Chroma Subsampling
4:4:4
Colour Depth
up to 12-bit
Colour Space
YUV
HDCP
2.2, 1.4 Compliant
HDMI Distance
up to 10 meters (33 feet) with Ecler VEO cables
Audio Input Connectors
1 3-pin Euroblock balanced MIC IN
5 3-pin Euroblock unbalanced stereo line
Audio Output Connectors
1 3-pin Euroblock
Audio Formats
LPCM 2Ch
Sample Rate
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz,
176.4kHz, 192kHz
Bit Depth
Up to 24-bit
Control Buttons
POWER button, Source selection button, OK/MENU, EXIT/AUTO, MIC-/+, VOL-/+f
EDID Management
Software
Status Indicators
POWER LED
Power supply
AC100 - 240V 50/60Hz Output: DC 24V/1A
DC mains connector
DC 24V Connector
Chassis material
Metal
Control Connectors
RJ45, 3-pin Euroblock, 6-pin Euroblock, 2 Minijack 3.5mm
Audio De-Embedding
Yes
Audio Embedding
Yes
Control Protocols
Web GUI, IR, Logic contacts, RS-232
