SAM412T
SAM412T
SAM412T
SAM412T

SAM412T

CSAM412T
Check availability
4x2 | 1U rack | 3-band EQ | analogue mixer
See more Features

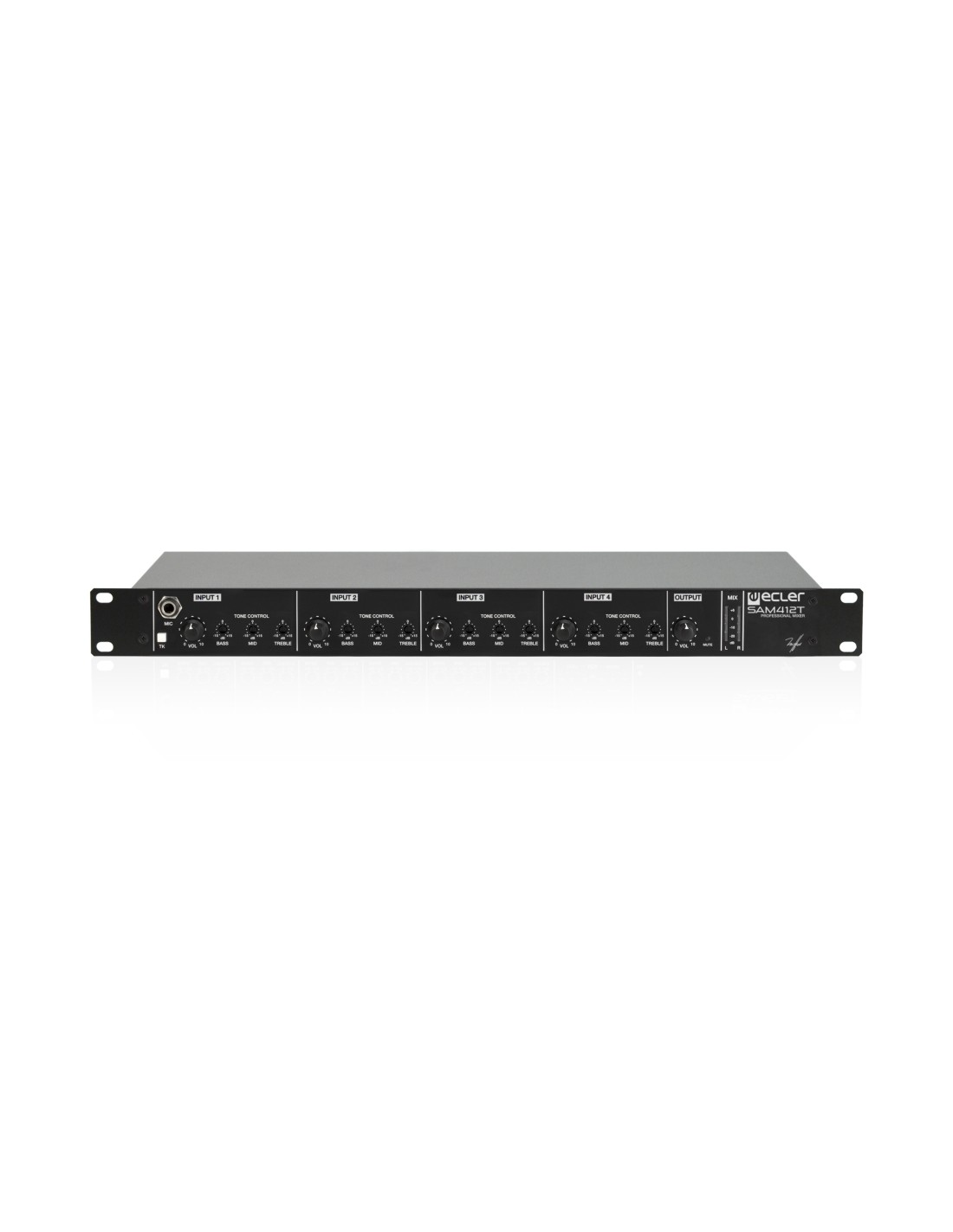

ECLER SAM412T is an installation mixer in standard rack format. It includes 4 MIC / ST LINE inputs, 2 stereo outputs, independent 3 band tone control per each input, Talkover (priority) function and external MUTE connection port.

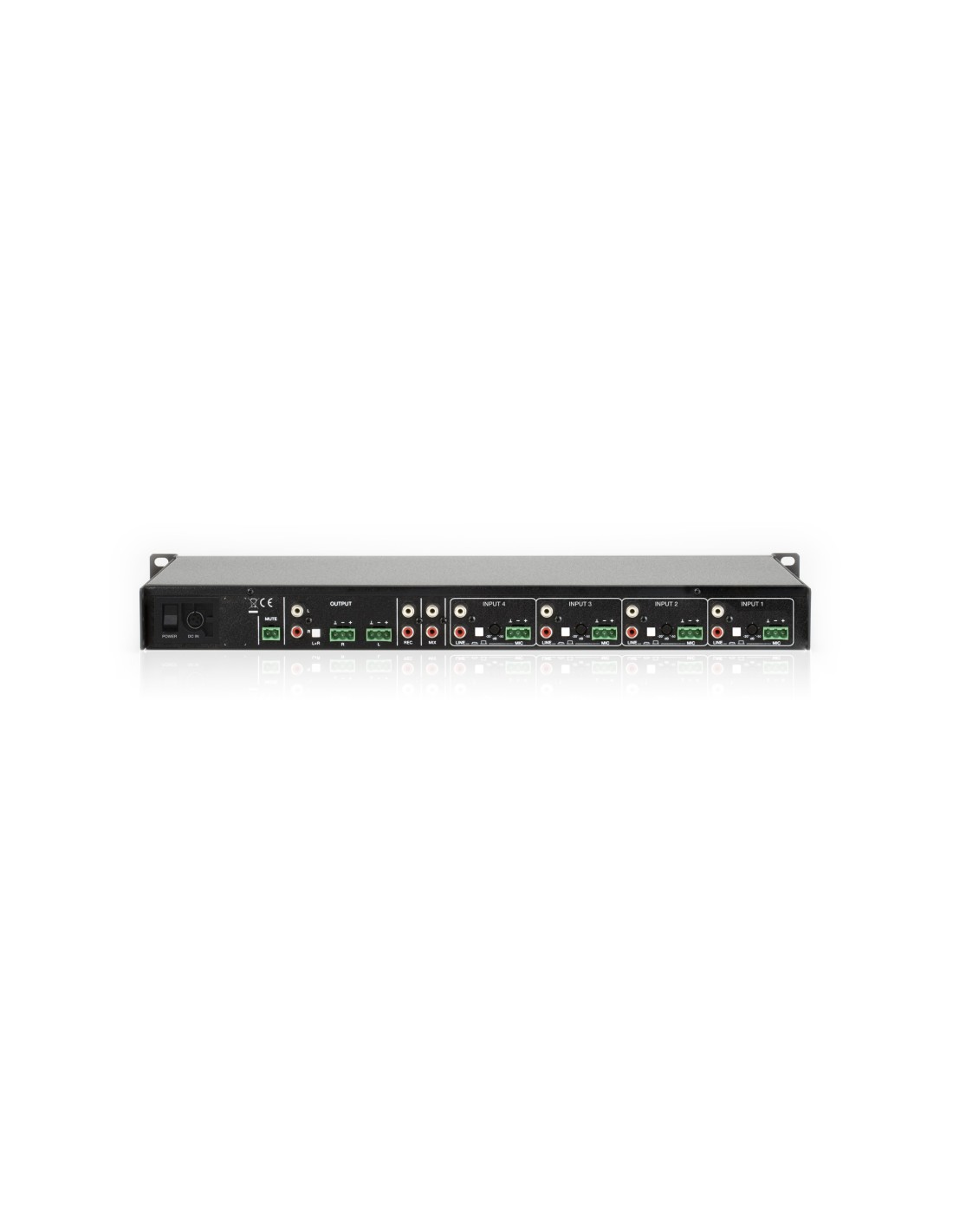

Connection type
3-pin Euroblock, double RCA
MIC: 3-pin Euroblock
LINE: double RCA
Installation options
19" rack format (1RU)
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
85% HR
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
90% HR
<90% HR
Dimensions
482.6 x 44 x 195 mm / 19 x 1.73 x 7.68 in. (WxHxD)
Weight
2.4 kg / 5.29 lb
Shipping dimensions
TBC
Shipping weight
TBC
Status
New
EAN code
8435071303422
Tariff code
8518400000
Shipping Location
Spain
Number of input ports
4, MIC/LINE level
1 direct MIC input on front panel
Input sensitivity
LINE(1, 2, 3): 0dBV
LINE(4): -5dBV
MIC BAL: -50(-20)dBV
MIX: 0dBV
CMRR
MIC 65dB @ 1 kHz
MIC >65dB @ 1 kHz
Number of output ports
2 main OUTs and 1 REC
Output impedance
OUT 1 BAL: 600Ω1(2)V
OUT 1 UNBAL: 2.2kΩ 1(2)V
REC: 10kΩ
GPIs
MUTE control port NO/NC
AC mains requirement
100-240 VAC + External PSU 17.5VDC
AC mains connector
IEC mains inlet connector
Power consumption
23 VA
Control Buttons
Talkover switch, Mains switch POWER, MIC/LINE selector, MONO/ST switch
Status Indicators
MUTE LED, MIX Vu-meter LED, ON LED
Power supply
Universal external power supply (multi-plug)
Phantom power
+18VDC
Input impedance
LINE(1, 2, 3): 50Ω
LINE(4): 50kΩ
MIC BAL: 1kΩ
MIX: 6Ω
LINE(1, 2, 3): 50Ω
LINE(4): 50kΩ
MIC BAL: >1kΩ
MIX: >6Ω
THD + Noise
LINE 0.01%
MIC BAL 0.04%
Tone control
3-band tone control
THD + Noise
LINE 0.01%
MIC BAL 0.04%
LINE <0.01%
MIC BAL <0.04%
Tone Frequency Cut
BASS 100Hz ±15dB
MID 2kHz ±15dB
TREBLE 10kHz ±15dB
Talkover
Yes
Phantom voltage
+18VDC
